Parameter:
|
Main Material
|
PP
|
|
Product Color
|
Gray, Blue, black or customized
|
|
Product Size
|
16,20,25,32,40,50,63,75,90,110
1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,3”,4”
|
|
Working Pressure
|
PN16-10
|
|
Connection
|
Thread and socket
|
|
Standard
|
DIN,BS,JIS,ANSI
|
Material List:
|
Part
|
Material
|
Color
|
|
Body
|
Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature.
|
black
|
|
Nut
|
Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004)
|
blue
|
|
Clinching ring
|
Polyacetal resin(POM)with high mechanical resistance white and hardness
|
white
|
|
Blocking bush
|
Polypropylene
|
black
|
|
O Ring gasket
|
Special elastomeric acrylonitrile rubber(NBR) for alimentary use
|
black
|
|
Reinforcing ring
|
AISI 430(UNI X8Cr17,W.nr 14828)Stainless
steel for female threads for 1/2”to 4”
|
silver
|
Product Feature:
1) light weight, convenient handling and corrosion-resistant
2) chemical stability , fluid resistance
3) anti-aging, long life, non-toxic
4) Smooth inner wall ,reducing pressure loss and increasing flow speed
5) Low noise ,reduced by 40% compared to galvanized steel pipes
6) Easy and fast installation, making cost minimized
7) Apply to construction, electrical conduit, agricultural irrigation, industrial sewage.

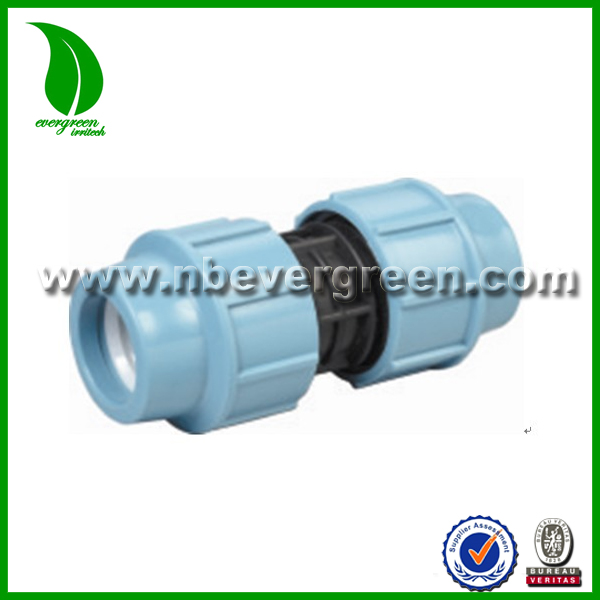

Produts Picture:
Exploded View:
Working Picture:
