Product Information 7104 PP compression fitting male Coupling
Quantity
Unit Piece/s
* message

The impact sprinkler's long throw radius and uniform water distribution re-creates the effect of natural rainfall, and the device quickly replaced the centuries-old technique of furrow irrigation, in which trenches were dug between rows of crops and flooded.

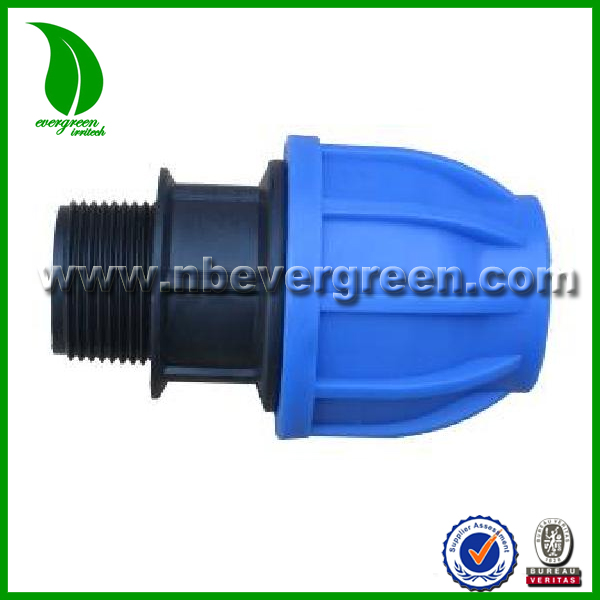

7104 PP compression fitting male Coupling

Parameter:

Goods number 7104
Size from 20mm to 110mm
Material PP
← Prev Next →

 Parameter:



Material

Nut: Polypropylene

Body: PP

Clinching-Ring: POM

O-ring: Rubber NBR or EPDM

Color

Gray,Blue or White

thickness

1.2mm-2.5mm

Specifications

DN15-DN200

Working  temperature

for cold water ≤ 60 °C during transfer
for hot water delivery time ≤ 95 °C

Working Pressure

PN10



Size:

16mm to 110mm




Features & Application:

 application

Pipe fittings are applied to construction, electrical conduit, agricultural irrigation, industrial sewage and other projects using .



1) Cold and hot water supply systems for civil and industrial constructions, e.g.in residential buildings, hospitals, hotels, school and office buildings, shipbuilding

2) Drinking water systems and food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems




Material List:





Part

Material

Color

Body

Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature.

black

Nut

Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004)

blue

Clinching ring

Polyacetal resin(POM)with high mechanical resistance white and hardness

white

Blocking bush

Polypropylene

black

O Ring gasket

Special elastomeric acrylonitrile rubber(NBR) for alimentary use

black

Reinforcing ring

AISI 430(UNI X8Cr17,W.nr 14828)Stainless

steel for female threads for 1/2”to 4”

 silver



Product Feature:



1)  light weight, convenient handling and corrosion-resistant

2)  chemical stability , fluid resistance

3)  anti-aging, long life, non-toxic

4)  Smooth inner wall ,reducing pressure loss and increasing flow speed

5)  Low noise ,reduced by 40% compared to galvanized steel pipes

6)  Easy and fast installation, making cost minimized

7)  Apply to construction, electrical conduit, agricultural irrigation, industrial sewage.

 Produts Picture:

Exploded View:





Working Picture:
