7001 PP compression fitting reducing coupling fitting
Video
Contact supplier
Ningbo Evergreen Irritech Co., Ltd.
Product Information 7001 PP compression fitting reducing coupling fitting
Quantity
Unit Piece/s
* message

The impact sprinkler's long throw radius and uniform water distribution re-creates the effect of natural rainfall, and the device quickly replaced the centuries-old technique of furrow irrigation, in which trenches were dug between rows of crops and flooded.

7001 PP compression fitting reducing coupling fitting

Parameter:

Goods number 7001
Size 16 20 25 32 40 50 63 75 90 110
Material PP
← Prev Next →

 Parameter:



Main Material

PP

Product Color

Gray, Blue, black or customized

Product Size

16,20,25,32,40,50,63,75,90,110

1/2”,3/4”,1”,1-1/4”,1-1/2”,2”,3”,4”

Working Pressure

PN16-10

Connection

Thread and socket

Standard

DIN,BS,JIS,ANSI





Material List:





Part

Material

Color

Body

Polypropylene block copolymer(PP-B) of exceptional mechanical properties even at high temperature.

black

Nut

Polyprolene with dye master of high stability to UV rays and solidity to heat(8 grade according to standard DIN 54004)

blue

Clinching ring

Polyacetal resin(POM)with high mechanical resistance white and hardness

white

Blocking bush

Polypropylene

black

O Ring gasket

Special elastomeric acrylonitrile rubber(NBR) for alimentary use

black

Reinforcing ring

AISI 430(UNI X8Cr17,W.nr 14828)Stainless

steel for female threads for 1/2”to 4”

 silver



Product Feature:



1)  light weight, convenient handling and corrosion-resistant

2)  chemical stability , fluid resistance

3)  anti-aging, long life, non-toxic

4)  Smooth inner wall ,reducing pressure loss and increasing flow speed

5)  Low noise ,reduced by 40% compared to galvanized steel pipes

6)  Easy and fast installation, making cost minimized

7)  Apply to construction, electrical conduit, agricultural irrigation, industrial sewage.

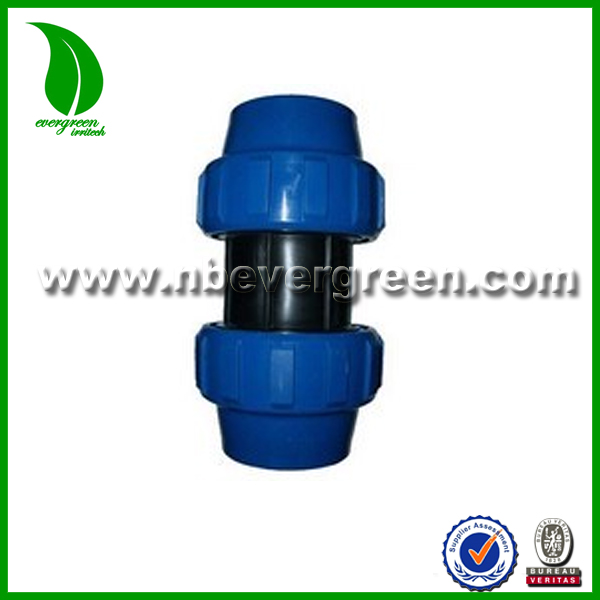

Produts Picture:

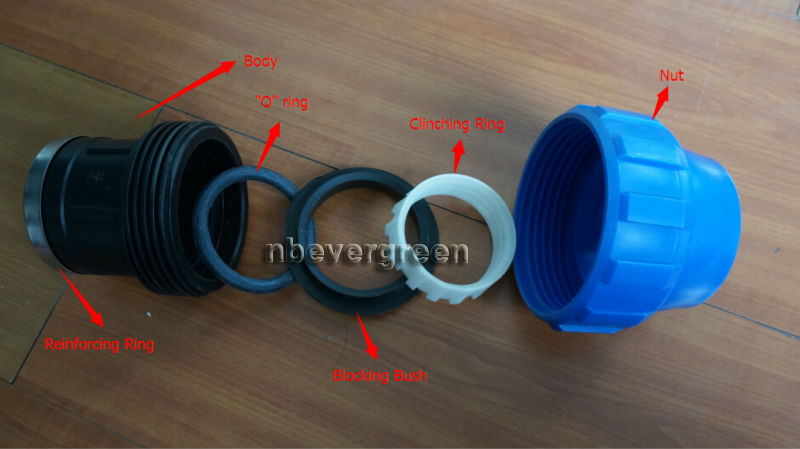

Exploded View:





Working Picture:
